World's largest vaccine manufacturer by number of doses produced and sold globally (more than 1.3 billion doses) which includes Polio vaccine as well as Diphtheria, Tetanus, Pertussis, Hib , BCG, r-Hepatitis B, Measles, Mumps and Rubella vaccines.

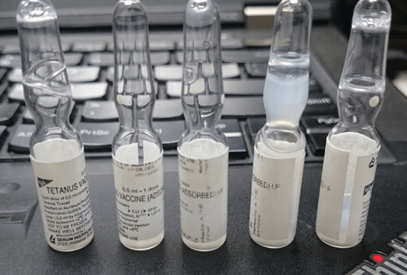

Specially designed for Labelling for Ampoule with High Speed. Machine having Total 11 Axis, 6 Axis is running with Synchronisation and remaining 5 axis for individual operation.
Exiting H/W was B&R and Machine Speed was 180 APM(Ampoules/Min.) With Mitsubishi we proved machine on 250 APM(Ampoules/Min.)

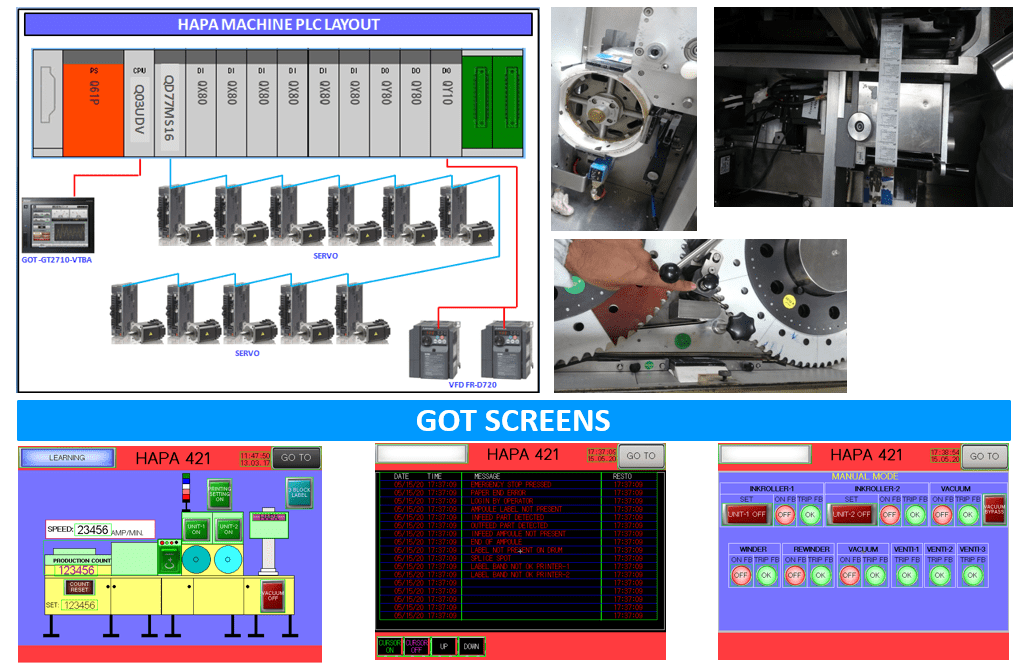

System Layout & HMI

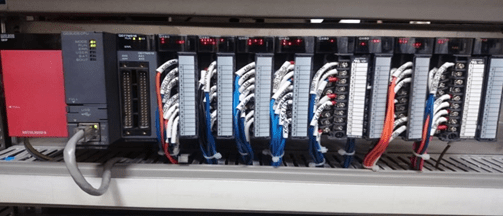

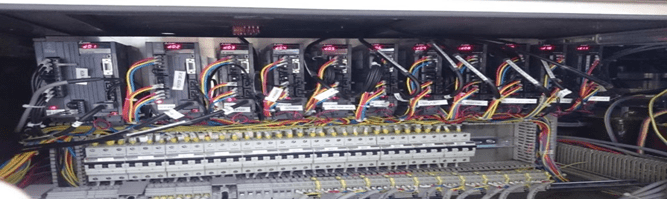

Features
Machine speed 250 APM(Ampoules/Min.)
New machine cost is about to a crore rupee.
Retrofit cost about to 20 Lakhs rupee.
After Mitsubishi system machine reduced 80% maintenance cost & time.
