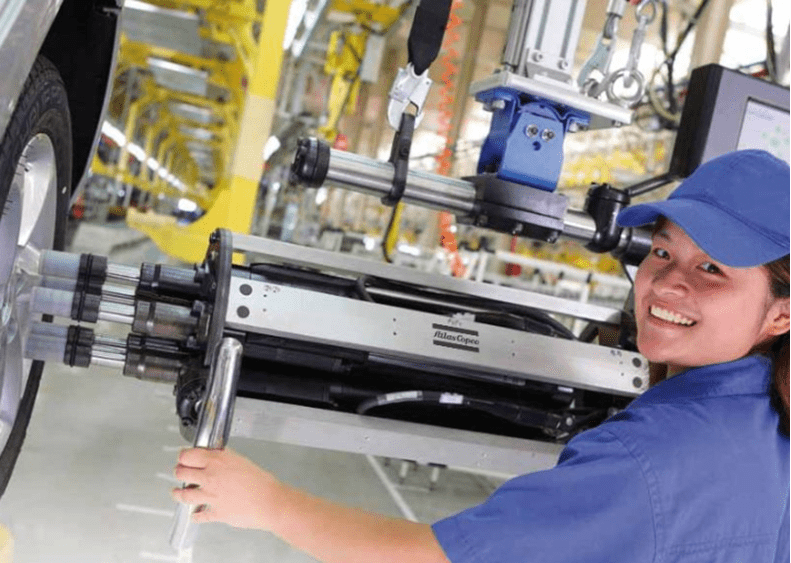

This Nut runner system used for Maruti Suzuki 4/5 wheel nut tightening.
Wheel nuts are tight as per settable torque and angle in controller and send torque & OK/NOT OK data to VTS centralize system.
4/5 model switch automatically as per model input given from VTS system.
All vehicles data stored in Maruti Suzuki server.
Current vehicles data show on HMI screen.

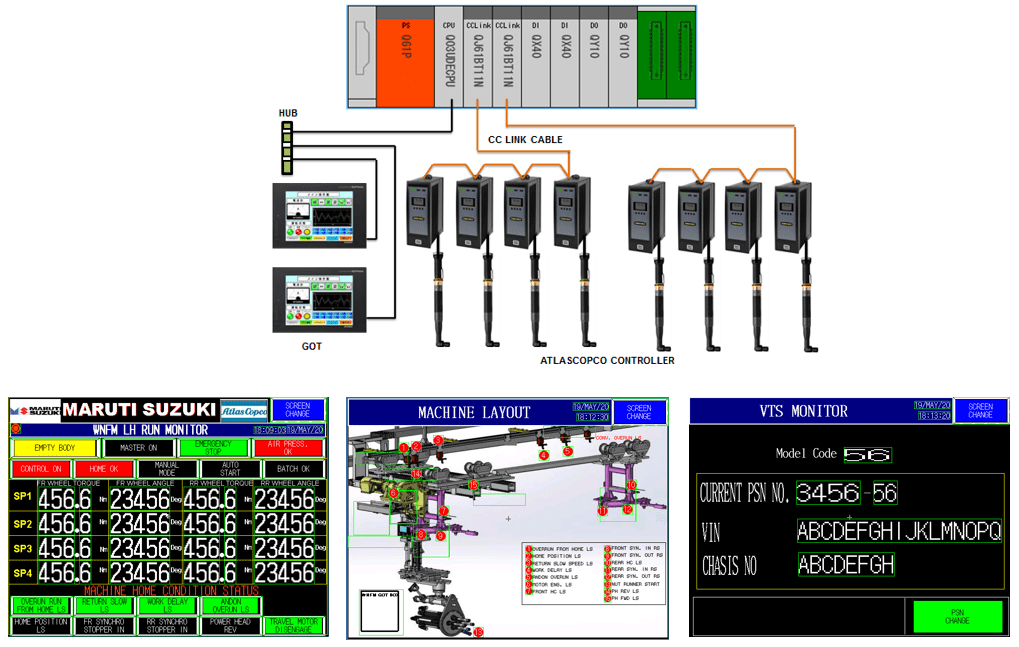

System Layout and HMI
Features
Maruti is largest manufacturer of passenger vehicle in India so production speed and accuracy is important factor which is achieved by Mitsubishi network.
High speed communication network achieves the production takt time.

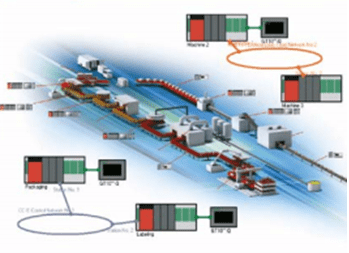

Mitsubishi CC-link network used for distributed Ios.
Distributed Ios can help to fault diagnose and trouble shooting.
All machine data controlled and saved from VTS with single CC Link network
Flexibility of setting of all Machine parameters from GOT
Machine hardwire interlock with conveyor for safety.
Maruti server data can see on GOT VTS screen like PSN No., VIN No. & Chassis No.
Every vehicle and all nuts tightening data stored in centralize system as per PSN.
