Opeartion Philosophy

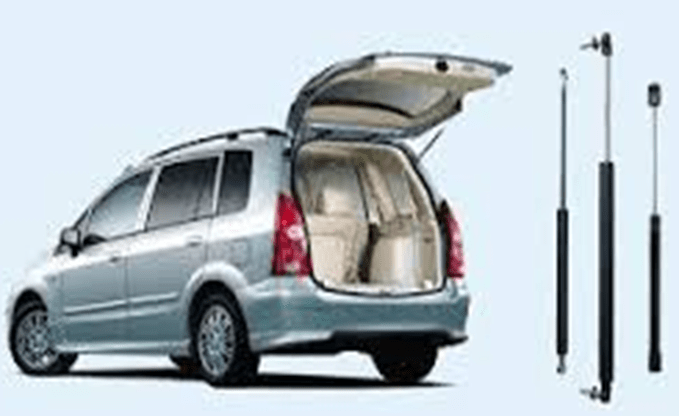

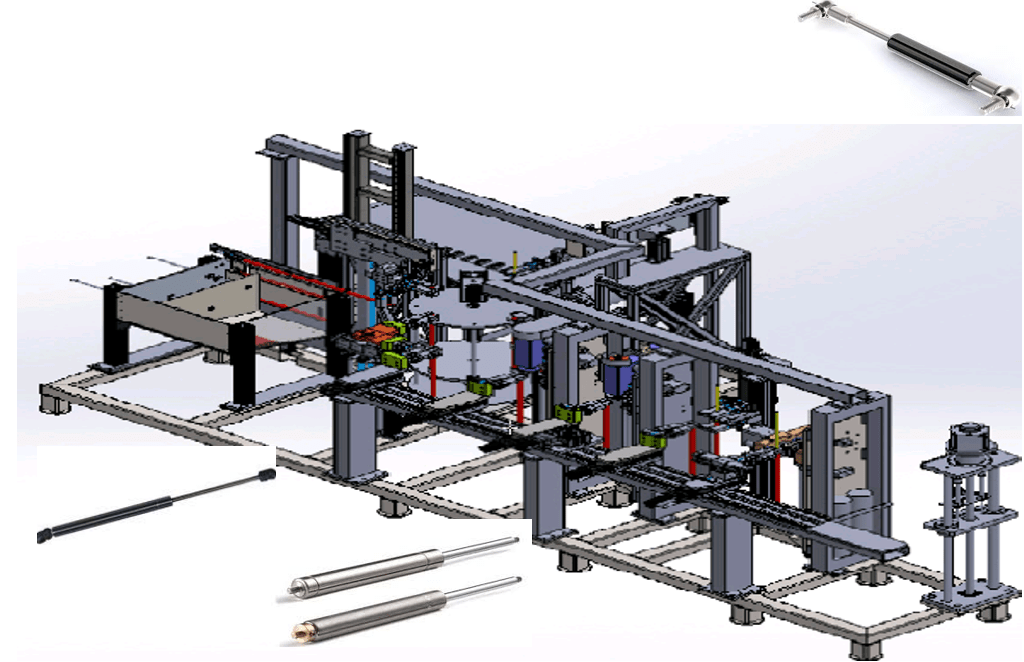

- Automated Gas spring assembly is used to assemble different types of gas springs used in automotive.
- Gas spring consists of a cylinder , guide, the piston and piston rod.
- More than 50 types of Gas spring is assemble on this assembly system.
- In this assembly system below operations are carried out
A) Rod Pick and Place
B) Rod insertion
C) Grooving system
D) Closing system
E) Gas Charging
F) Force testing

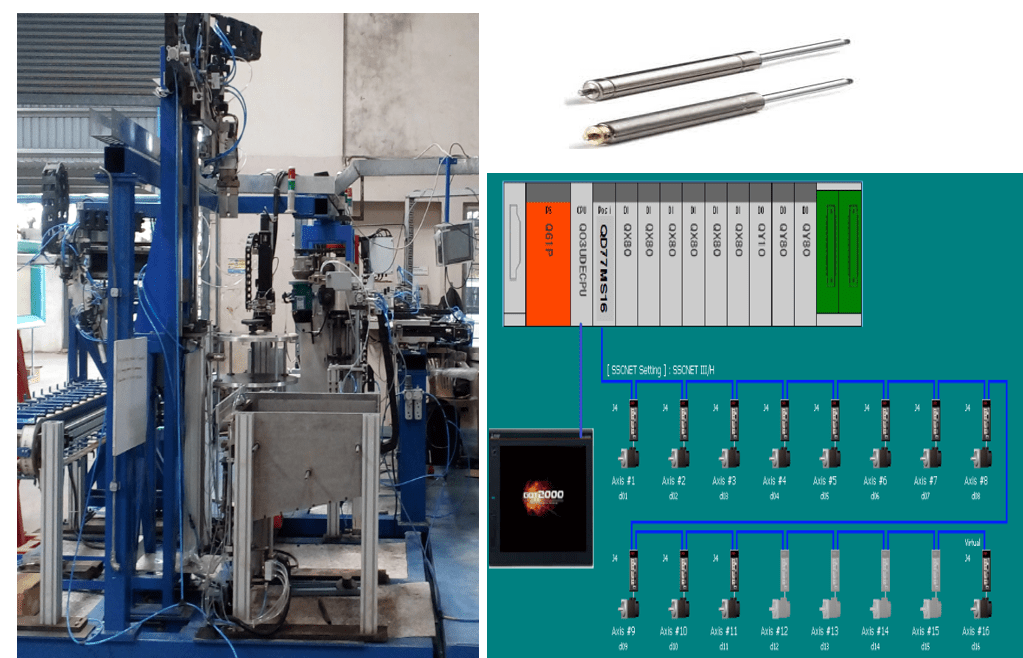

System Layout & HMI
Features
- Synchronization for more than 10 no. of Servo
- Achieved Cycle time 6 sec
- Trials are going on for different settings
- All 16 axis communicate on SSCNET
- Selection for 2000 jobs and settings on GOT
Configuration
- PLC – Q-Series
- SERVO –SSCNET 16 Axis
- GOT- GT27 Series.
- VFD- FR-E Series.
- High Speed Card
