ALARM MONITORING AND CONTROL SYSTEM FOR CARGO SHIP
Over 8 such projects successfully commissioned FOR WORLDS 2 ND LARGEST shipping company and More in line …

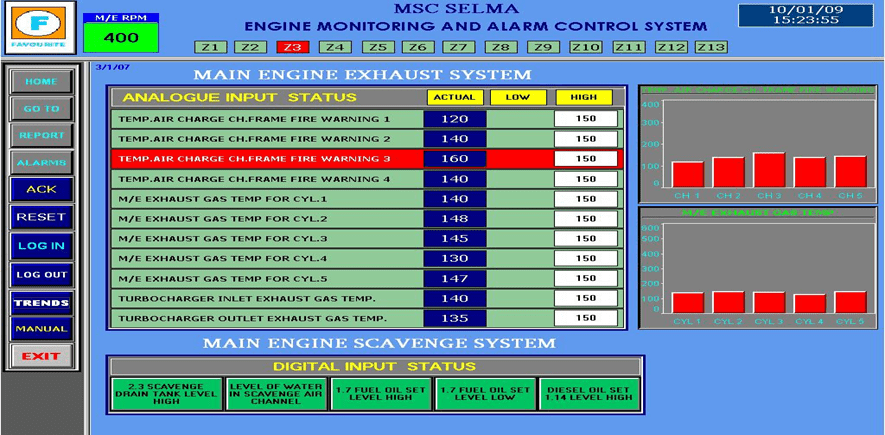

Opeartion Philosophy
- Main Engine , Aux. Engine Alarm and Control System
- Display Critical Alarms for all parameters viz Temperature / Pressure / RPM / Load etc. Total > 500 Alarms for Analog and Digital Input signals.
- Display All Cylinder Temp’s : Exhaust, Piston, Jacket Cooling, Turbo Charger, Fuel Oil

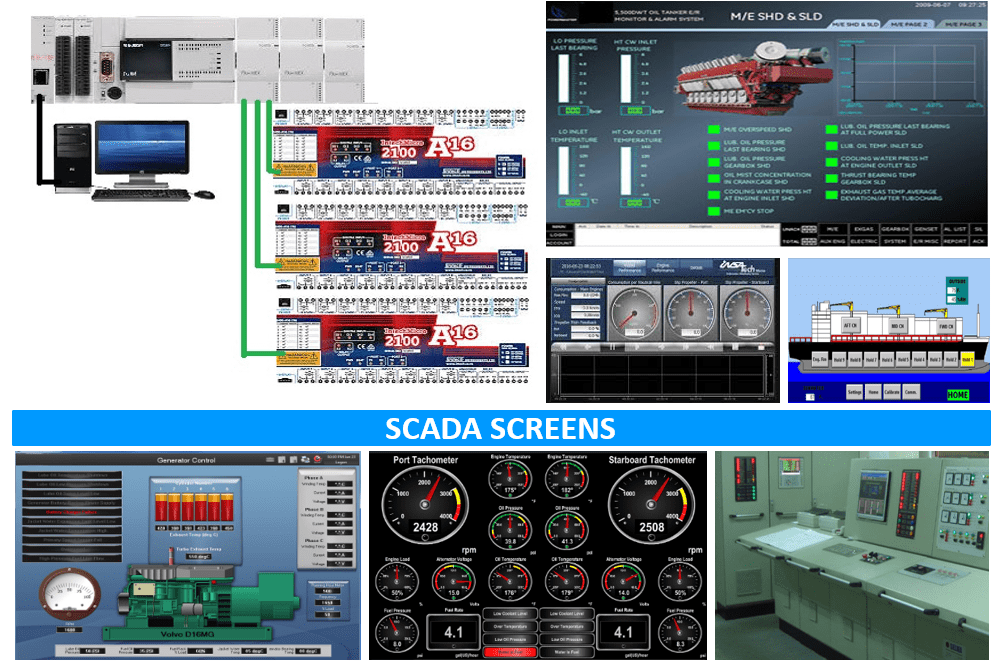

System Layout & HMI

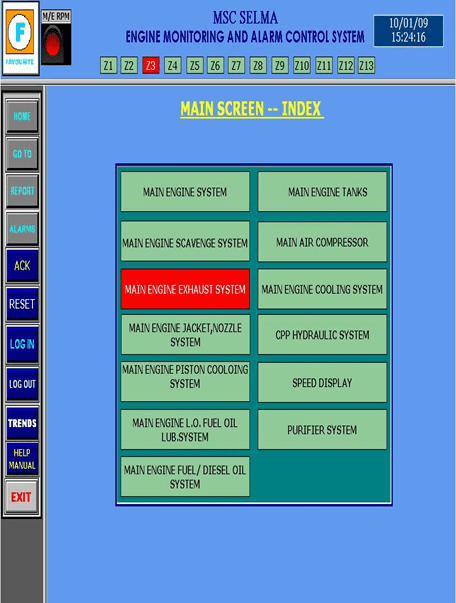

Features
- Display Main Engine all parameter like Temperature , Lubrication Pressure ,rpm Oil tank level ,fuel oil, load on Engine.
- Main engine and Auxiliary Engine all Exhaust / Jacket cooling Cylinder temperature
- Slow down /shutdown critical Alarm.
- Generate reports for Digital / Alarm signal with zone wise and system wise
- Display field side sensor failure alarm
- On critical alarm comes sikgnal given to main engine for slow down of shut dolwn.
Configuration
- PLC – Mitsubishi FX series
- Universal Data logger Intech Instruments Analog Multiplexer
- Elipse SCADA system
- System Design as per Approval of marine category Approval .DNV , GL , BV etc
