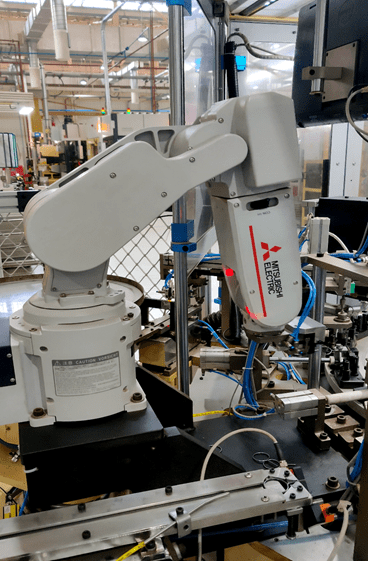

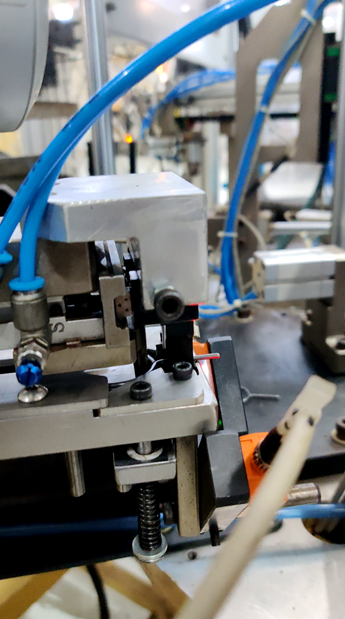

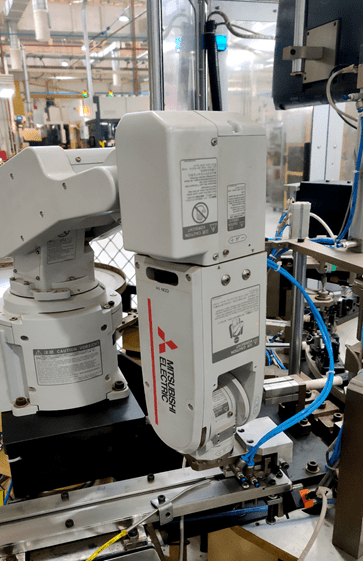

Specially designed for Pin Insert Into Plunger (engine part). Two finger gripper attached on robot arm (J6 Axis). Specially designed for pin diameter.
Advantage to control Robot moving speed & insert pin into plunger as per machine speed.
Machine designed for total 4 variants.

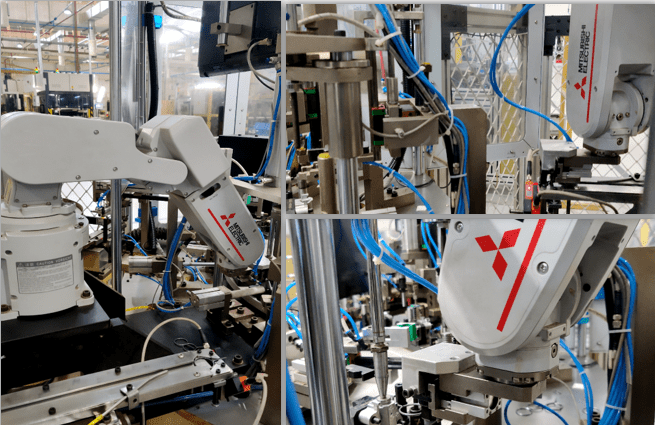

System Layout & HMI

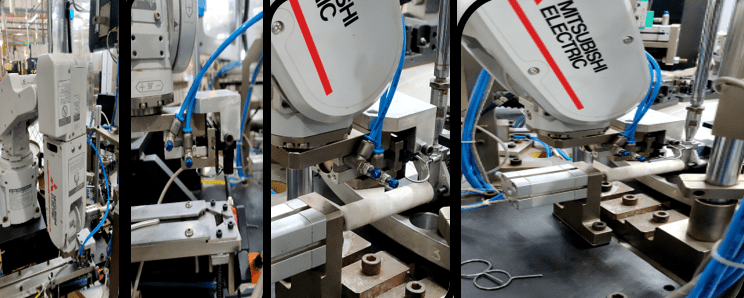

Features
Developed robotic system.
Multi model parts can be attached for single system.
Production rate increased.
Machine output 515 Parts / Hr.
Any time speed can change
Installation of Pin Insert Application System on total 4 type of variants teaching & programming on single system.
Configuration
Robot – Mitsubishi RV-2FRL
Robot Payload-3Kg, Reach -649mm.
Gripper – Customized Gripper with SMC make actuator.
