Operation Philosophy

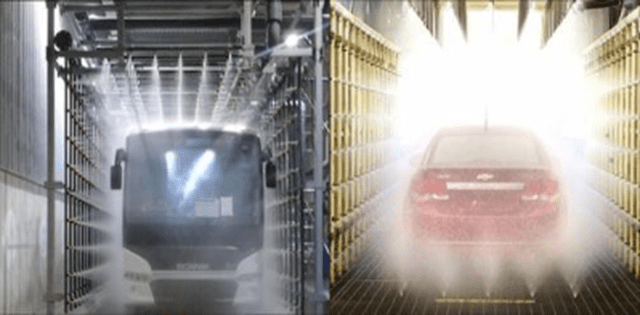

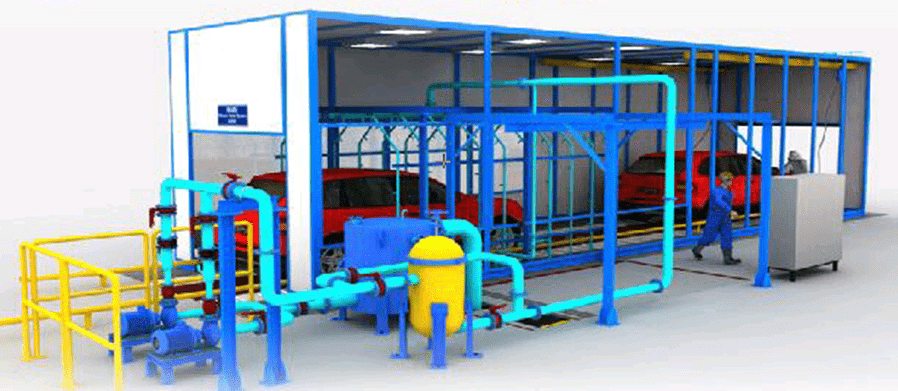

This is Vehicle shower tester machine.
When vehicle enter (Entry of shower sensor ON) in the shower tester main pump (shower pump) gets ON.
When Exit of shower sensor ON, Main pump gets OFF.
As per the water level drain pump ON/OFF.

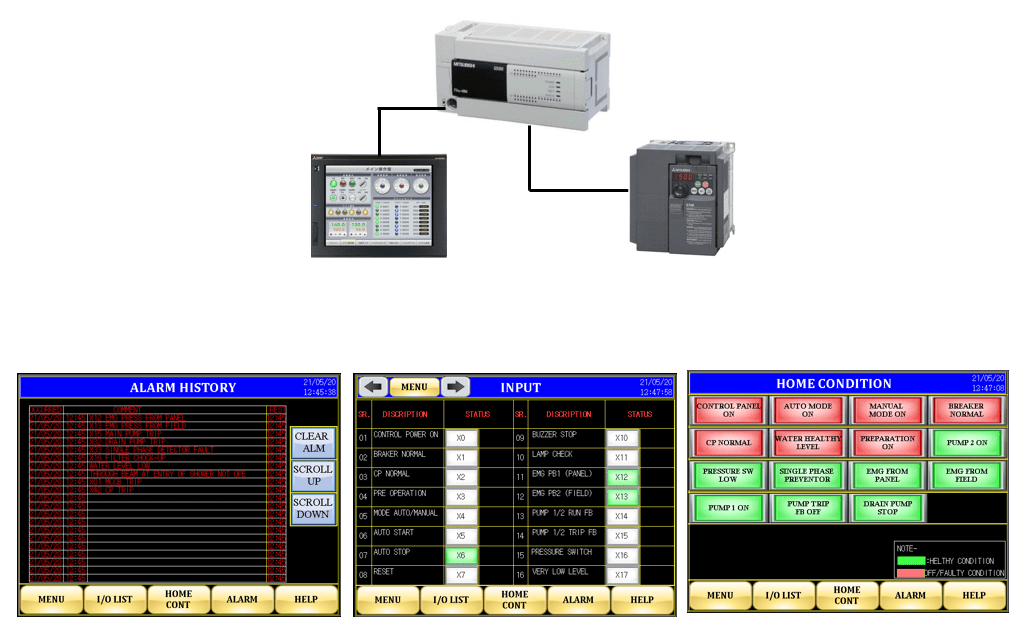

System Layout and HMI
Features
- Machine designed with standby pump facility, Option select from main panel.
- Energy Saving achieved through Mitsubishi
- Machine interlock with hardwires ANDON signal for safety purpose.
- PLC program developed in flexible way to easily understand and debug.
- All faults indicates on GOT and ANDON display.
- Maintained pressure helps to detect the leakage.
Configuration
- PLC: Fx Series
- Communication – Serial
- GOT – GT2000
- VFD- D700 Series
