Operation Philosophy
To control the water distribution in the cities or rural areas where a person is not available for monitoring. This system provides monitoring and control over pumps and storage tanks.

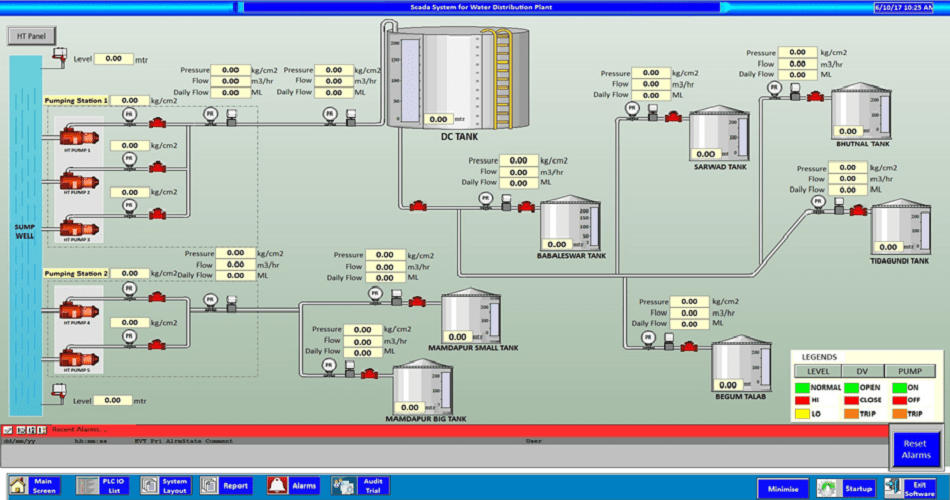

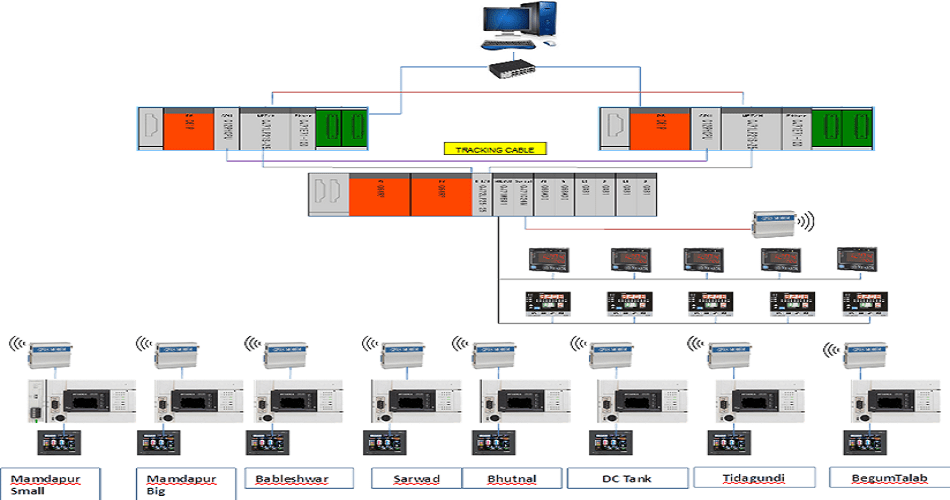

System Layout & HMI
Features
- Wide area around 50km water distribution network spread.
- Faster communication network with more than 200 IOS used.
- Water distribution is very critical and important to cities and rural areas.
- Water distribution to these area population is dependent only on this system only.
- Mitsubishi make Redundant PLC system take cares of these network
- Redundant network takes care of undisturbed water supply to every cities and rural area connected to this network
- In any failure change over time is in milli seconds and water supply continues.
- Water supply is monitored in real time ,GSM module is used to for Alarms and for Level of the tanks.
- We get the Real time level of the tanks on real time feedbacks pumping station operates.
- Centralized SCADA system can monitor status all the water distribution tanks.
- SCADA is used for pump operations and data logging. Monthly , hourly report generation.
- Serial card is used for GSM communication with remote PLC.
- Pump energy parameters and winding temperature monitored through MODBUS communication.

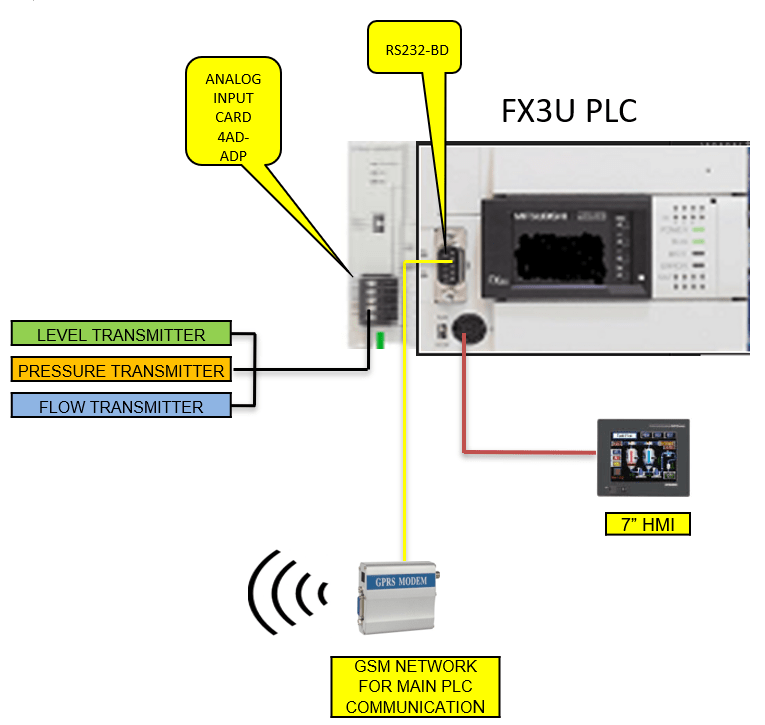

Configuration
- PLC – Q Series with redundant features. FX3U for remote stations Analog Input Card
- GOT-GS Series.
- GSM Model.
